 DELCOM-Series |
|
|

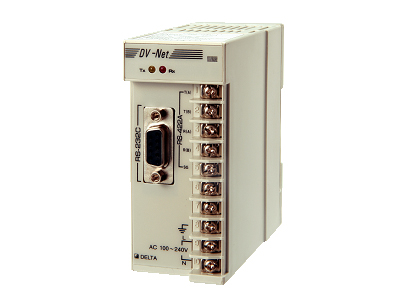

DELCOM-Series Communication Protocol & Level Converter
1. RS-232C to RS-422A
2. RS-232C to RS-485
3. RS-232C
Mode of Operation : Single-Ended
Number of Drivers and Receivers Allowed on One line : 1 Driver, 1 Receiver
Maximum cable length : 15m
Maximum Data Rate : 20kb/s
4. RS-422A
Mode of Operation : Differential
Number of Drivers and Receivers Allowed on One line : 1 Driver, 10 Receiver
Maximum cable length : 1.2km
Maximum Data Rate : 20kb/s
5. RS-485
Mode of Operation : Differential
Number of Drivers and Receivers Allowed on One line : 32 Driver, 32 Receiver
Maximum cable length : 1.2km
Maximum Data Rate : 20kb/s
6. Power supply : AC 100~240V 50/60Hz
Dimension : W42 * H96 * D101mm Din. standard
|
|
